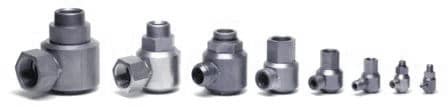

Our 9S-90° Swivels for Hydraulic Systems
The “9S” Series swivels represent one of the most complete range of sizes and configurations available to industry. This series has been redesigned to incorporate a one piece barrel arrangement thus eliminating the need for braze joints. These swivels are pressure balanced with operating pressures up to 5,000 psi. All configurations are designed with a 4:1 Safety Factor and include RoHS compliant zinc plating.
Design Features of Our 9S-90° Swivels
- Protective treatment – Zinc Plating with Yellow Chromate RoHS compliant finish
- One piece investment cast barrel – no braze joint
- Full 4:1 design safety factor
- Standard O-Ring and back up ring – Field replaceable seal kits
- Optional seal material
- Burnished barrel bore – Extends seal life
- Recessed and protected dust seals
- Pressure balanced for low rotational torque
- Heavy duty retainer ring
- Excellent flow characteristics
Showing 1–4 of 478 results
Our 9S-90° Swivel Products
Product Filters
-
9S4F4-F4
BC Size: -4 (1/4") Stem Connector: F-Male O-Ring Face Seal SC Size: -4 (1/4") -
9S4F4-FF4
BC Size: -4 (1/4") Stem Connector: FF-Female O-Ring Face Seal SC Size: -4 (1/4") -
9S4F4-J4
BC Size: -4 (1/4") Stem Connector: J-Male JIC SC Size: -4 (1/4") -
9S4F4-J5
BC Size: -4 (1/4") Stem Connector: J-Male JIC SC Size: -5 (5/16")
Product Diagram for Our 9S-90° Swivels
Labeled Diagram for Our 9S-90° Swivel
Additional & Custom Product Options
Swivels shown in this catalog are considered standard to Hydraulics, Inc. For other requirements relative to pressure ratings or port options, not shown in this catalog, please contact us. Optional seal material may be specified by adding the seal compound designator suffix to the part number.
Custom Products
