18S-Parallel Plane Swivels for Hydraulic Systems
Design Features of Our 18S-Parallel Plane Swivels
- Hardened carbon steel barrel – Large wear surface
- Standard O-Ring and back up ring – Field replaceable seal kits
- Investment Cast Barrel – High Strength
- Optional seal material
- Burnished barrel bore – Extends seal life
- Recessed and protected dust seals
- Copper filled furnace braze joints
- Pressure balanced for low rotational torque
- Heavy duty retainer ring
- Low Pressure Drop
- Protective treatment-Zinc Plating with Yellow Chromate RoHS Compliant Finish
Showing 1–4 of 220 results
Our 18S-Parallel Plane Swivel Products
Product Filters
Barrel Connector
BC Size
Stem Connector
SC Size
-
18S6F4-F4
BC Size: -4 (1/4") Stem Connector: F-Male O-Ring Face Seal SC Size: -4 (1/4") -
18S6F4-F6
BC Size: -4 (1/4") Stem Connector: F-Male O-Ring Face Seal SC Size: -6 (3/8") -
18S6F4-F8
BC Size: -4 (1/4") Stem Connector: F-Male O-Ring Face Seal SC Size: -8 (1/2") -
18S6F4-J5
BC Size: -4 (1/4") Stem Connector: J-Male JIC SC Size: -5 (5/16")

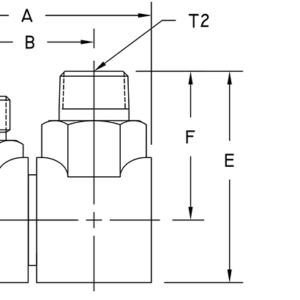

Product Diagram for 18S-Parallel Plane Swivels
Additional & Custom Product Options
Swivels shown on this website are considered standard to Hydraulics, Inc. For other requirements relative to pressure ratings or port options, not shown on this website, please contact us. Optional seal material may be specified by adding the seal compound designator suffix to the part number.
