TVFN6-FP24 TVF – Flat Face Style Coupling fluid power component configured with a FP – SAE J518 4-Bolt Flange Port port connector sized at -32 (2″).
Related Documents & Downloads
TVFN6-FP24 TVF - Flat Face Style Coupling
Product Specifications
| Weight | 12.9 lbs |
|---|---|
| Part Number | TVFN6-FP24 |
| Port Connector | FP – SAE J518 4-Bolt Flange Port |
| Port Size | -32 (2") |
| Max Connect Under Pressure | 1,000 psi |
| Mini Burst Pressure (Coupled) | 24,000 psi |

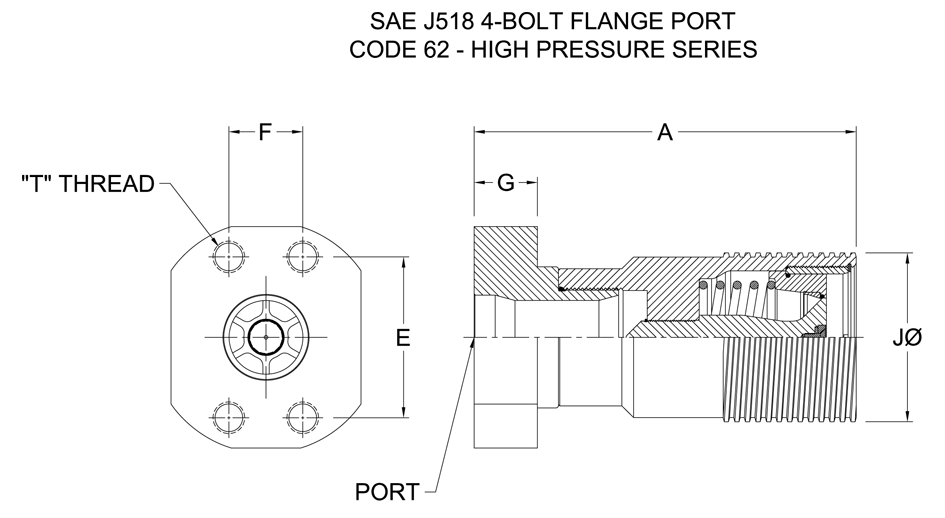

| A (metric) | 196.9 mm |
| E (metric) | 79.5 mm |
| F (metric) | 36.6 mm |
| g (metric) | 35.1 mm |
| J Diameter (metric) | 82.6 mm |
| T (metric) | UNC-2B |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 5.9 kg |
| Temperature Range (C) | -34°C to 121°C |
