TVFN6-FH32 TVF – Flat Face Style Coupling fluid power component configured with a FP – SAE J518 4-Bolt Flange Port port connector sized at -20 (1 1/4″).
Related Documents & Downloads
TVFN6-FH32 TVF - Flat Face Style Coupling
Product Specifications
| Weight | 18.3 lbs |
|---|---|
| Part Number | TVFN6-FH32 |
| Port Connector | FP – SAE J518 4-Bolt Flange Port |
| Port Size | -20 (1 1/4") |
| Max Connect Under Pressure | 1,000 psi |
| Mini Burst Pressure (Coupled) | 24,000 psi |

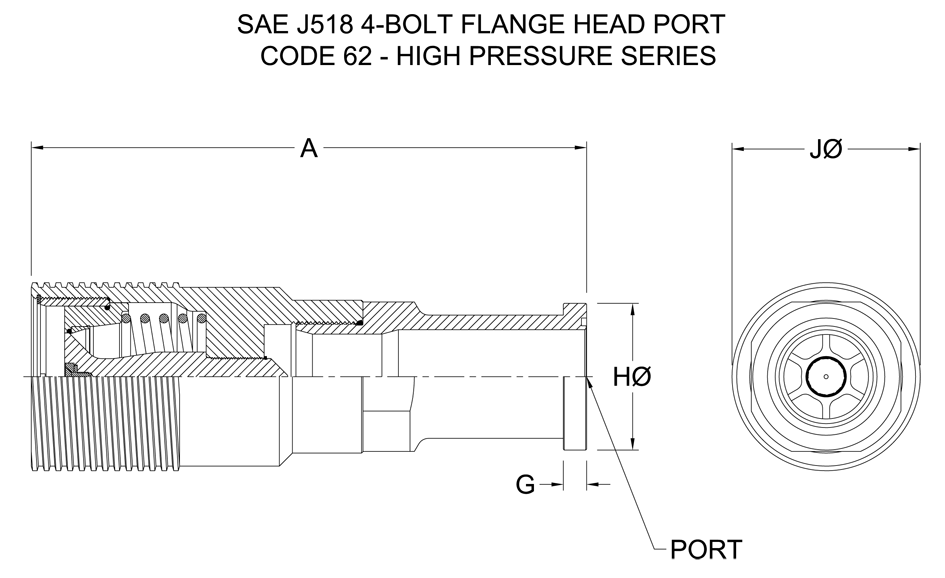

| A (metric) | 299.7 mm |
| g (metric) | 12.7 mm |
| H Diameter (metric) | 79.2 mm |
| J Diameter (metric) | 101.6 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 8.3 kg |
| Temperature Range (C) | -34°C to 121°C |
