TVFN4-FH20 TVF – Flat Face Style Coupling fluid power component configured with a FH – SAE J518 4-Bolt Flange Head port connector sized at -24 (1 1/2″).
Related Documents & Downloads
TVFN4-FH20 TVF - Flat Face Style Coupling
Product Specifications
| Weight | 6.4 lbs |
|---|---|
| Part Number | TVFN4-FH20 |
| Port Connector | FH – SAE J518 4-Bolt Flange Head |
| Port Size | -24 (1 1/2") |
| Max Connect Under Pressure | 1,000 psi |
| Mini Burst Pressure (Coupled) | 16,000 psi |

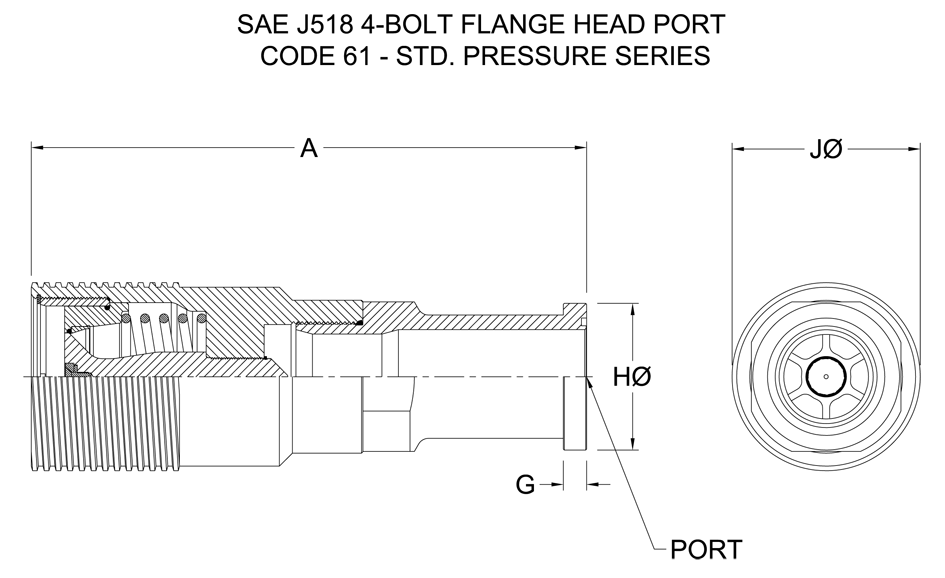

| A (metric) | 221.0 mm |
| g (metric) | 8.0 mm |
| H Diameter (metric) | 50.8 mm |
| J Diameter (metric) | 66.8 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 2.9 kg |
| Temperature Range (C) | -34°C to 121°C |
