TVFC6-FP32 TVF – Flat Face Style Coupling fluid power component configured with a port connector sized at .
Related Documents & Downloads
TVFC6-FP32 TVF - Flat Face Style Coupling
Product Specifications
| Weight | 24.5 lbs |
|---|---|
| Part Number | TVFC6-FP32 |
| Max Connect Under Pressure | 1,000 psi |
| Mini Burst Pressure (Coupled) | 24,000 psi |

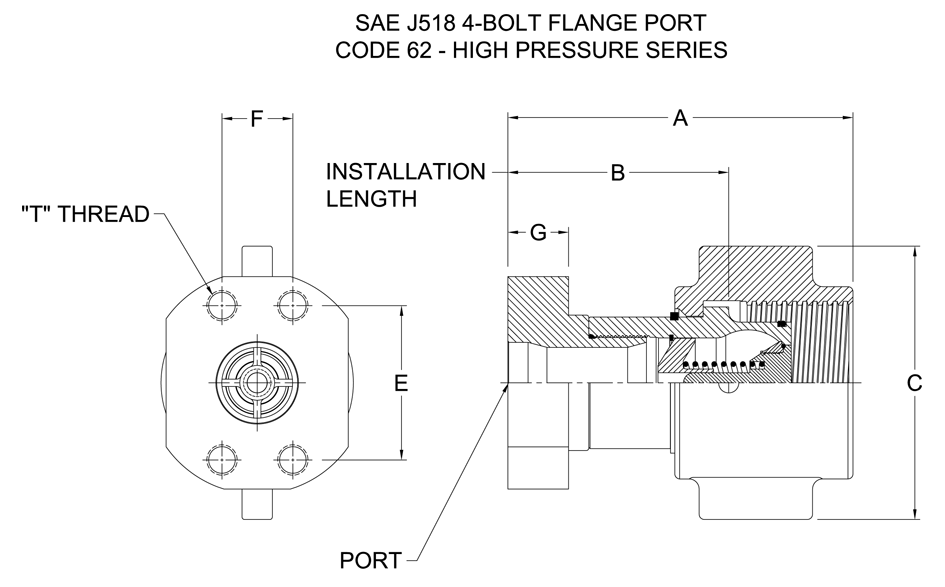

| A (metric) | 216.4 mm |
| B (metric) | 138.4 mm |
| C (metric) | 171.5 mm |
| E (metric) | 96.8 mm |
| F (metric) | 44.5 mm |
| g (metric) | 38.1 mm |
| T (metric) | UNC-2B |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 11.1 kg |
| Temperature Range (C) | -34°C to 121°C |
