TVFC3-FH24 TVF – Flat Face Style Coupling fluid power component configured with a FH – SAE J518 4-Bolt Flange Head port connector sized at -32 (2″).
Related Documents & Downloads
TVFC3-FH24 TVF - Flat Face Style Coupling
Product Specifications
| Weight | 9.8 lbs |
|---|---|
| Part Number | TVFC3-FH24 |
| Port Connector | FH – SAE J518 4-Bolt Flange Head |
| Port Size | -32 (2") |
| Max Connect Under Pressure | 1,000 psi |
| Mini Burst Pressure (Coupled) | 12,000 psi |

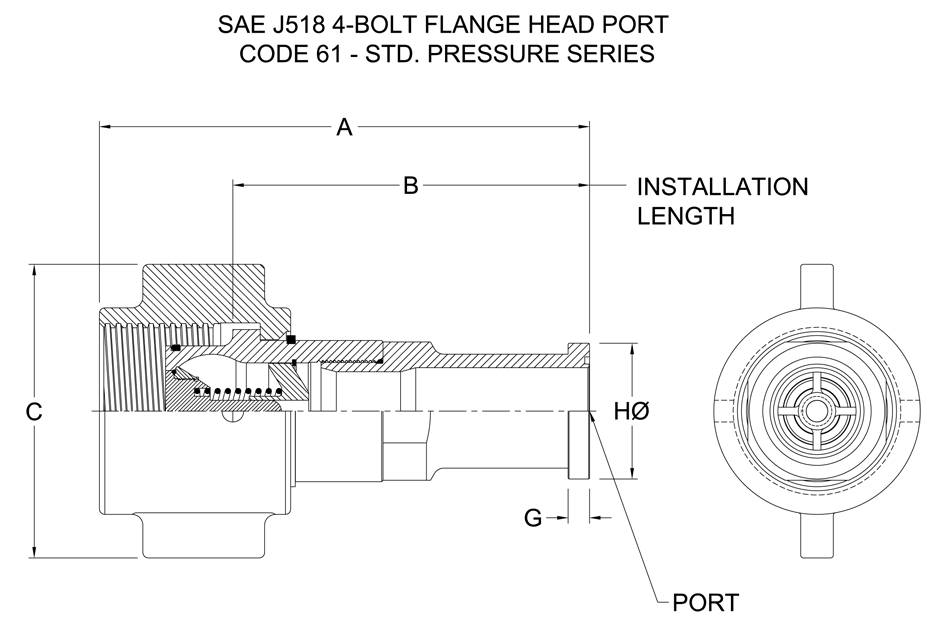

| A (metric) | 221.2 mm |
| B (metric) | 162.8 mm |
| C (metric) | 120.7 mm |
| g (metric) | 8.0 mm |
| H Diameter (metric) | 60.5 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 4.4 kg |
| Temperature Range (C) | -34°C to 121°C |
