TVF-N-32BF TVF – Flat Face Style Coupling fluid power component configured with a FH – SAE J518 4-Bolt Flange Head port connector sized at -20 (1 1/4″).
Related Documents & Downloads
TVF-N-32BF TVF - Flat Face Style Coupling
Product Specifications
| Weight | 13.2 lbs |
|---|---|
| Part Number | TVF-N-32BF |
| Port Connector | FH – SAE J518 4-Bolt Flange Head |
| Port Size | -20 (1 1/4") |
| Max Connect Under Pressure | 1,000 psi |
| Mini Burst Pressure (Coupled) | 20,000 psi |

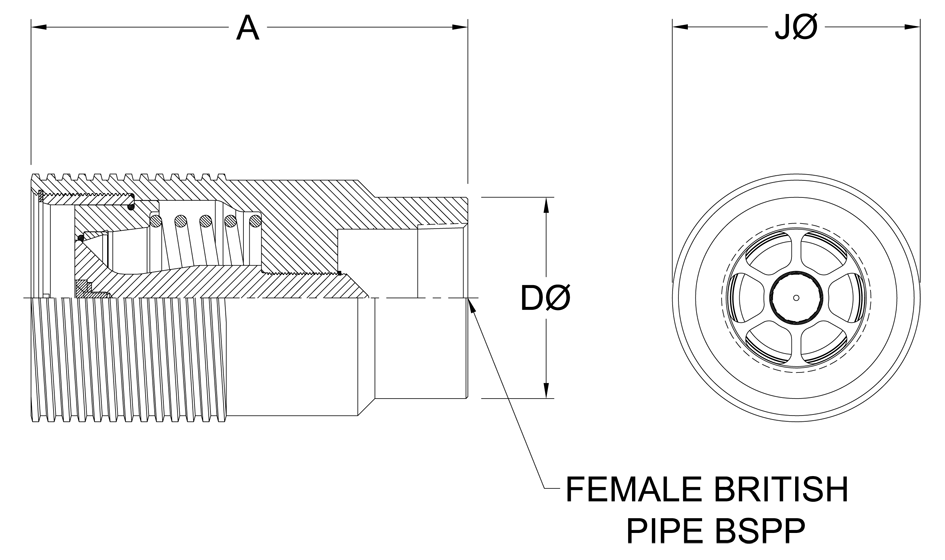

| T1 (metric) | BSPP |
| A (metric) | 179.1 mm |
| D Diameter (metric) | 82.6 mm |
| J Diameter (metric) | 101.6 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 6.0 kg |
| Temperature Range (C) | -34°C to 121°C |
