TVF-C-20 TVF – Flat Face Style Coupling fluid power component configured with a PF – Female Pipe port connector sized at -24 (1 1/2″).
Related Documents & Downloads
TVF-C-20 TVF - Flat Face Style Coupling
Product Specifications
| Weight | 5 lbs |
|---|---|
| Part Number | TVF-C-20 |
| Port Connector | PF – Female Pipe |
| Port Size | -24 (1 1/2") |
| Max Connect Under Pressure | 1,000 psi |
| Mini Burst Pressure (Coupled) | 20,000 psi |
| T1 (metric) | NPTF |

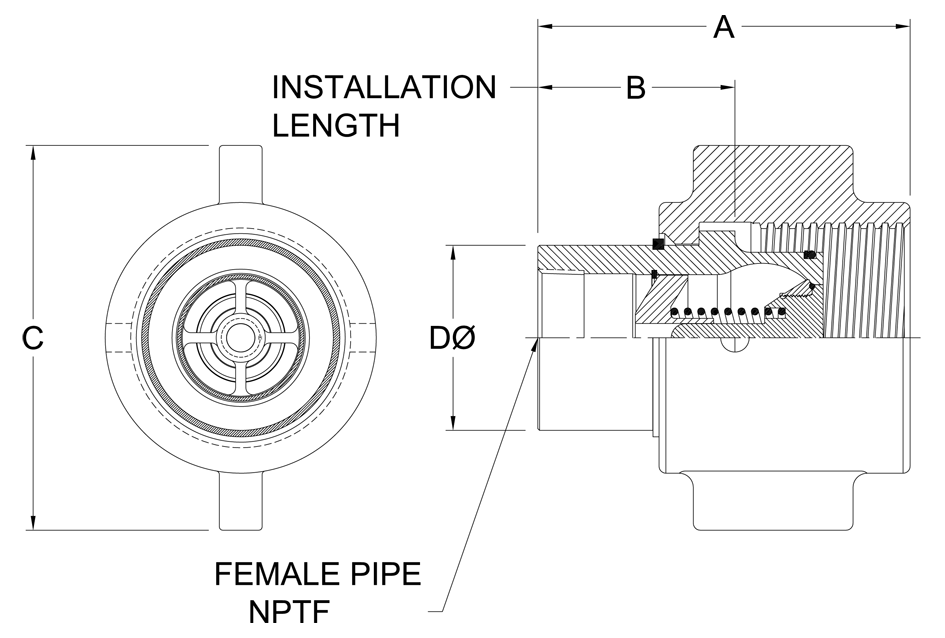

| A (metric) | 118.1 mm |
| B (metric) | 66.8 mm |
| C (metric) | 114.6 mm |
| D Diameter (metric) | 53.8 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 2.3 kg |
| Temperature Range (C) | -34°C to 121°C |
