S8PF8-FF10 S-Inline Swivel fluid power component configured with a -8 (1/2″) PF-Female Pipe barrel connector and -10 (5/8″) FF-Female O-Ring Face Seal stem connector.
Related Documents & Downloads
S8PF8-FF10 S-Inline Swivel

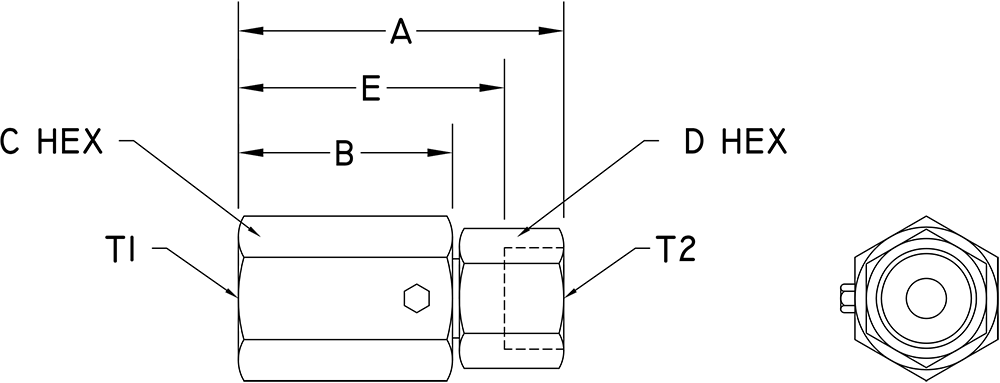

Product Specifications
| Barrel Connector | PF-Female Pipe |
|---|---|
| BC Size | -8 (1/2") |
| Stem Connector | FF-Female O-Ring Face Seal |
| SC Size | -10 (5/8") |
| T1 (metric) | NPTF |
| T2 (metric) | UNS-2B |
| A (metric) | 69.9 mm |
| B (metric) | 45.0 mm |
| C Hex (metric) | 31.8 mm |
| D Hex (metric) | 31.8 mm |
| Vacuum (metric) | 1.0 bar |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 20.7 MPa |
