S8J8-O8 S-Inline Swivel fluid power component configured with a -8 (1/2″) J-Male JIC barrel connector and -8 (1/2″) O-Male SAE O-Ring Boss stem connector.
Related Documents & Downloads
S8J8-O8 S-Inline Swivel
Product Specifications
| Weight | 0.69 lbs |
|---|---|
| Barrel Connector | J-Male JIC |
| BC Size | -8 (1/2") |
| Stem Connector | O-Male SAE O-Ring Boss |
| SC Size | -8 (1/2") |

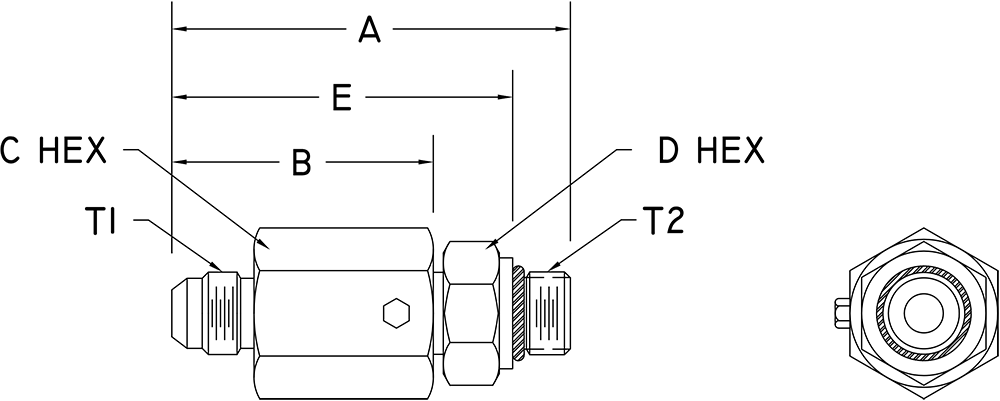

| T1 (metric) | UNF-2A |
| T2 (metric) | UNF-2A |
| A (metric) | 79.5 mm |
| B (metric) | 48.3 mm |
| C Hex (metric) | 31.8 mm |
| D Hex (metric) | 31.8 mm |
| E (metric) | 65.5 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 0.31 kg |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 20.7 MPa |
