S6J4-JF4 S-Inline Swivel fluid power component configured with a -4 (1/4″) J-Male JIC barrel connector and -4 (1/4″) JF-Female JIC stem connector.
Related Documents & Downloads
S6J4-JF4 S-Inline Swivel

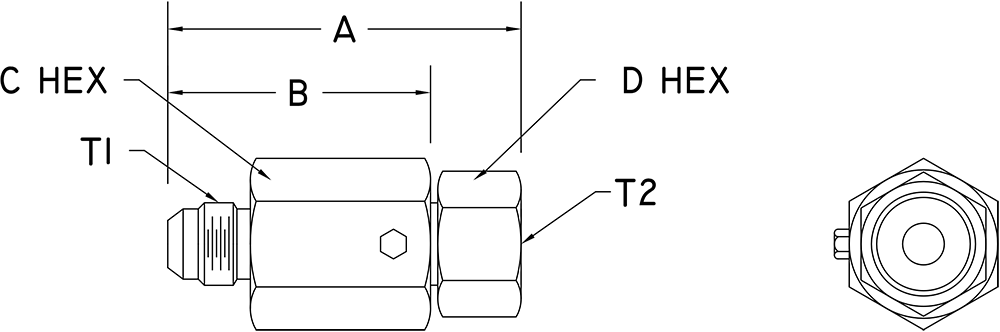

Product Specifications
| Barrel Connector | J-Male JIC |
|---|---|
| BC Size | -4 (1/4") |
| Stem Connector | JF-Female JIC |
| SC Size | -4 (1/4") |
| T1 (metric) | UNF-2A |
| T2 (metric) | UNF-2B |
| A (metric) | 61.2 mm |
| B (metric) | 46.5 mm |
| C Hex (metric) | 25.4 mm |
| D Hex (metric) | 25.4 mm |
| Vacuum (metric) | 1.0 bar |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 20.7 MPa |
