S6F8-O8 S-Inline Swivel fluid power component configured with a -8 (1/2″) F-Male O-Ring Face Seal barrel connector and -8 (1/2″) O-Male SAE O-Ring Boss stem connector.
Related Documents & Downloads
S6F8-O8 S-Inline Swivel

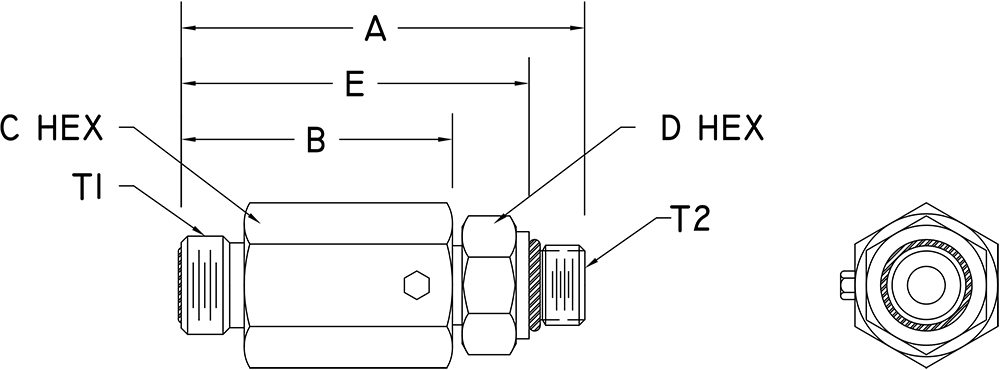

Product Specifications
| Weight | 0.43 lbs |
|---|---|
| Barrel Connector | F-Male O-Ring Face Seal |
| BC Size | -8 (1/2") |
| Stem Connector | O-Male SAE O-Ring Boss |
| SC Size | -8 (1/2") |
| T1 (metric) | UN-2A |
| T2 (metric) | UNF-2A |
| A (metric) | 71.4 mm |
| B (metric) | 48.3 mm |
| C Hex (metric) | 25.4 mm |
| D Hex (metric) | 25.4 mm |
| E (metric) | 57.4 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 0.20 kg |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 20.7 MPa |
