S6F6-J6 S-Inline Swivel fluid power component configured with a -6 (3/8″) F-Male O-Ring Face Seal barrel connector and -6 (3/8″) J-Male JIC stem connector.
Related Documents & Downloads
S6F6-J6 S-Inline Swivel
Product Specifications
| Barrel Connector | F-Male O-Ring Face Seal |
|---|---|
| BC Size | -6 (3/8") |
| Stem Connector | J-Male JIC |
| SC Size | -6 (3/8") |
| T1 (metric) | UN-2A |
| T2 (metric) | UNF-2A |

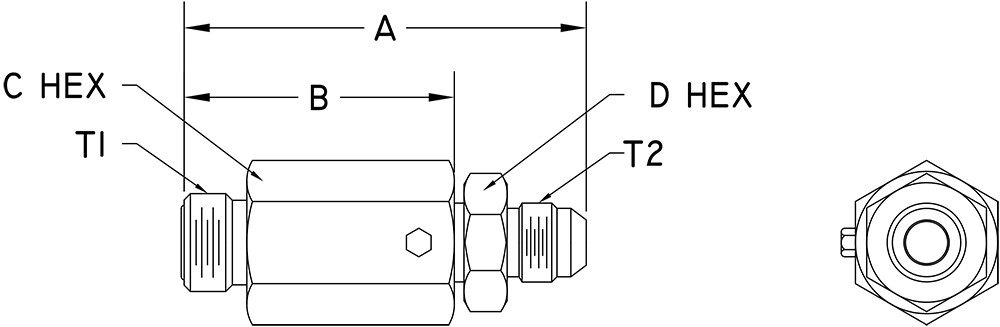

| A (metric) | 71.4 mm |
| B (metric) | 48.3 mm |
| C Hex (metric) | 25.4 mm |
| D Hex (metric) | 25.4 mm |
| Vacuum (metric) | 1.0 bar |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 20.7 MPa |
