S32J32-P32 S-Inline Swivel fluid power component configured with a -32 (2″) J-Male JIC barrel connector and -32 (2″) P-Male Pipe stem connector.
Related Documents & Downloads
S32J32-P32 S-Inline Swivel
Product Specifications
| Weight | 8.95 lbs |
|---|---|
| Barrel Connector | J-Male JIC |
| BC Size | -32 (2") |
| Stem Connector | P-Male Pipe |
| SC Size | -32 (2") |

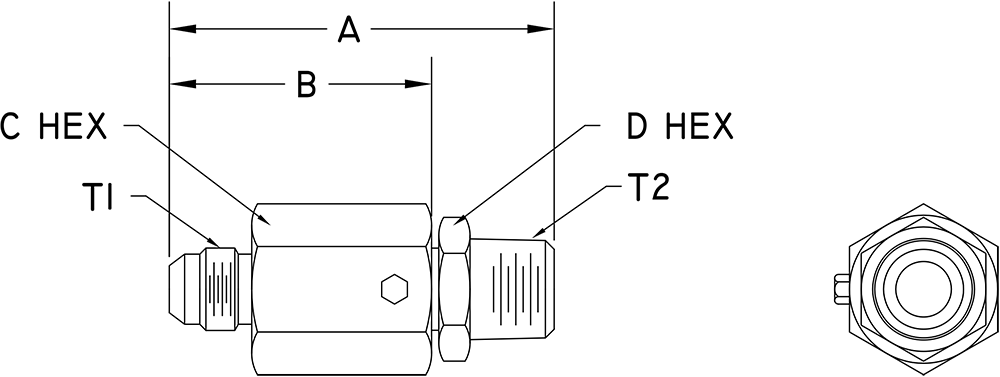

| T1 (metric) | UN-2A |
| T2 (metric) | NPTF |
| A (metric) | 177.0 mm |
| B (metric) | 111.5 mm |
| C Hex (metric) | 88.9 mm |
| D Hex (metric) | 88.9 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 4.06 kg |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 20.7 MPa |
