S24PF24-JF24 S-Inline Swivel fluid power component configured with a -24 (1 1/2″) PF-Female Pipe barrel connector and -24 (1 1/2″) JF-Female JIC stem connector.
Related Documents & Downloads
S24PF24-JF24 S-Inline Swivel
Product Specifications
| Weight | 4.35 lbs |
|---|---|
| Barrel Connector | PF-Female Pipe |
| BC Size | -24 (1 1/2") |
| Stem Connector | JF-Female JIC |
| SC Size | -24 (1 1/2") |

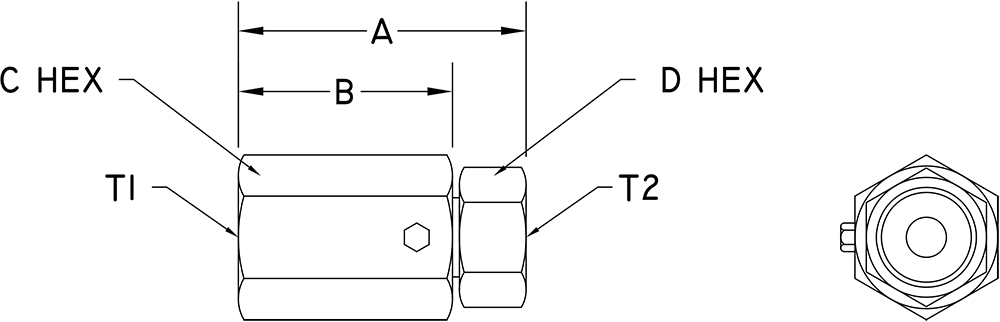

| T1 (metric) | NPTF |
| T2 (metric) | UN-2B |
| A (metric) | 107.2 mm |
| B (metric) | 81.8 mm |
| C Hex (metric) | 69.9 mm |
| D Hex (metric) | 69.9 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 1.97 kg |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 20.7 MPa |
