S20PF20-P20 S-Inline Swivel fluid power component configured with a -20 (1 1/4″) PF-Female Pipe barrel connector and -20 (1 1/4″) P-Male Pipe stem connector.
Related Documents & Downloads
S20PF20-P20 S-Inline Swivel
Product Specifications
| Weight | 2.67 lbs |
|---|---|
| Barrel Connector | PF-Female Pipe |
| BC Size | -20 (1 1/4") |
| Stem Connector | P-Male Pipe |
| SC Size | -20 (1 1/4") |
| T1 (metric) | NPTF |
| T2 (metric) | NPTF |

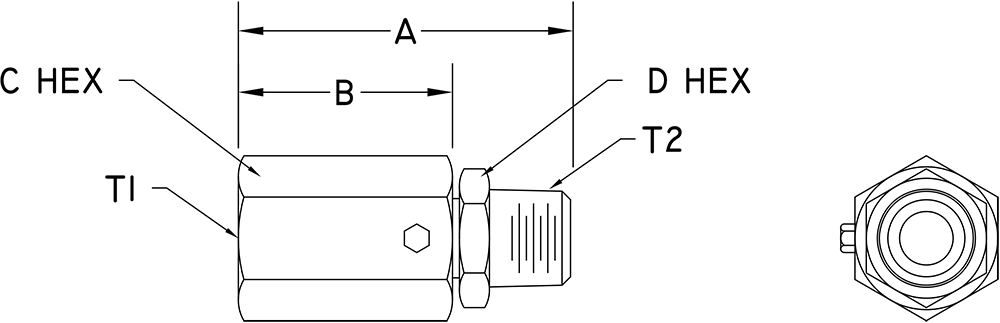

| A (metric) | 111.0 mm |
| B (metric) | 66.0 mm |
| C Hex (metric) | 57.2 mm |
| D Hex (metric) | 50.8 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 1.21 kg |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 20.7 MPa |
