HS8PF8-FF8 HS – Heavy Duty Inline Swivel fluid power component configured with a -8 (1/2″) PF-Female Pipe barrel connector and -8 (1/2″) FF-Female O-Ring Face Seal stem connector.
Related Documents & Downloads
HS8PF8-FF8 HS - Heavy Duty Inline Swivel

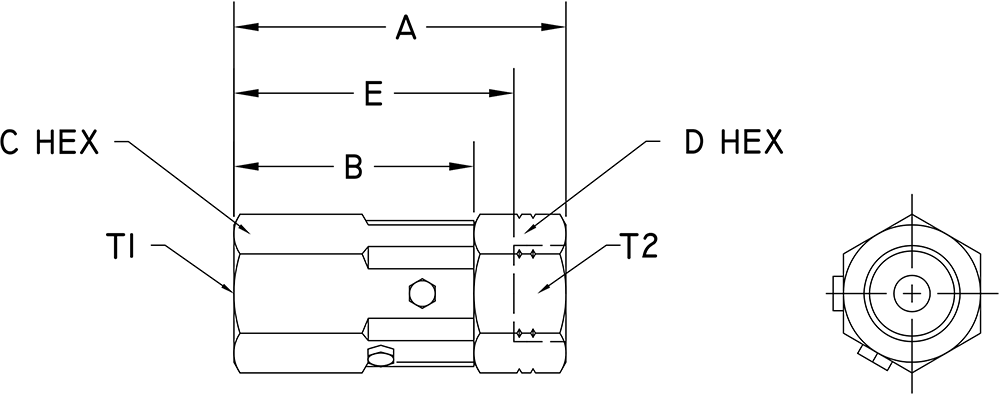

Product Specifications
| Part Number | HS8PF8-FF8 |
|---|---|
| Barrel Connector | PF-Female Pipe |
| BC Size | -8 (1/2") |
| Stem Connector | FF-Female O-Ring Face Seal |
| SC Size | -8 (1/2") |
| T1 (metric) | NPTF |
| T2 (metric) | UN-2B |
| A (metric) | 72.6 mm |
| B (metric) | 55.1 mm |
| C Hex (metric) | 31.8 mm |
| D Hex (metric) | 31.8 mm |
| E (metric) | 61.7 mm |
| Vacuum (metric) | 1.0 bar |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 34.5 MPa |
