HS32PF32-JF32 HS – Heavy Duty Inline Swivel fluid power component configured with a -32 (2″) PF-Female Pipe barrel connector and -32 (2″) JF-Female JIC stem connector.
Related Documents & Downloads
HS32PF32-JF32 HS - Heavy Duty Inline Swivel

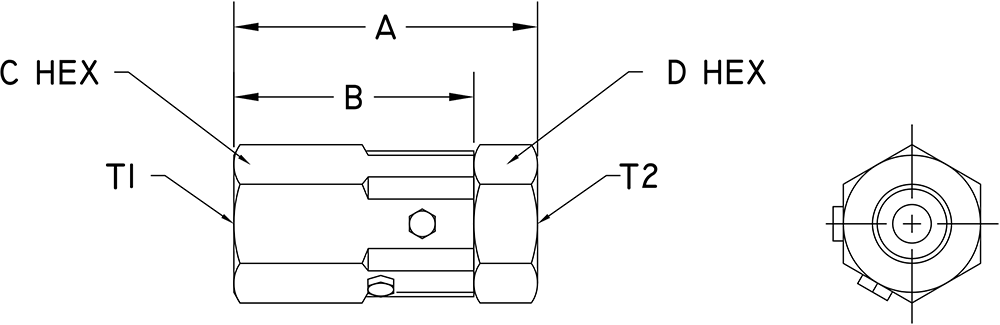

Product Specifications
| Part Number | HS32PF32-JF32 |
|---|---|
| Barrel Connector | PF-Female Pipe |
| BC Size | -32 (2") |
| Stem Connector | JF-Female JIC |
| SC Size | -32 (2") |
| T1 (metric) | NPTF |
| T2 (metric) | UN-2B |
| A (metric) | 142.0 mm |
| B (metric) | 109.2 mm |
| C Hex (metric) | 88.9 mm |
| D Hex (metric) | 88.9 mm |
| E (metric) | 0.0 mm |
| Vacuum (metric) | 1.0 bar |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 20.7 MPa |
