HS20F20-FF20 HS – Heavy Duty Inline Swivel fluid power component configured with a -20 (1 1/4″) F-Male O-Ring Face Seal barrel connector and -20 (1 1/4″) FF-Female O-Ring Face Seal stem connector.
Related Documents & Downloads
HS20F20-FF20 HS - Heavy Duty Inline Swivel

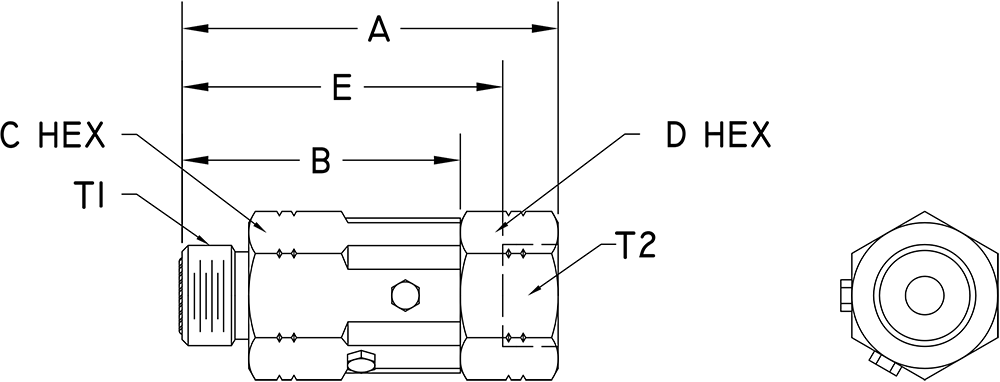

Product Specifications
| Part Number | HS20F20-FF20 |
|---|---|
| Barrel Connector | F-Male O-Ring Face Seal |
| BC Size | -20 (1 1/4") |
| Stem Connector | FF-Female O-Ring Face Seal |
| SC Size | -20 (1 1/4") |
| T1 (metric) | UN-2A |
| T2 (metric) | UN-2B |
| A (metric) | 101.3 mm |
| B (metric) | 71.4 mm |
| C Hex (metric) | 57.2 mm |
| D Hex (metric) | 50.8 mm |
| E (metric) | 86.4 mm |
| Vacuum (metric) | 1.0 bar |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 27.6 MPa |
