9SS8J8-J8 9SS-Dual Plane Swivel fluid power component configured with a -8 (1/2″) J-Male JIC barrel connector and -8 (1/2″) J-Male JIC stem connector.
Related Documents & Downloads
9SS8J8-J8 9SS-Dual Plane Swivel
Product Specifications
| Weight | 1.13 lbs |
|---|---|
| Part Number | 9SS8J8-J8 |
| Barrel Connector | J-Male JIC |
| BC Size | -8 (1/2") |
| Stem Connector | J-Male JIC |
| SC Size | -8 (1/2") |

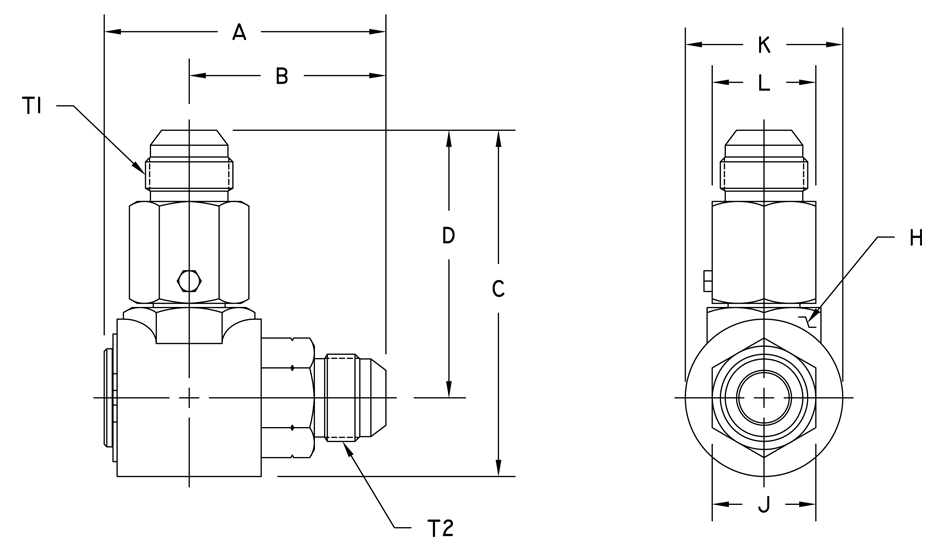

| K Diameter | 1.3 |
| T1 (metric) | UNF-2A |
| T2 (metric) | UNF-2A |
| A (metric) | 71.9 mm |
| B (metric) | 50.5 mm |
| C (metric) | 87.6 mm |
| D (metric) | 71.1 mm |
| E (metric) | 0.0 mm |
| H Hex (metric) | 28.7 mm |
| J Hex (metric) | 25.4 mm |
| L Hex (metric) | 31.8 mm |
| K Diameter (metric) | 33.0 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 0.51 kg |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 20.7 MPa |
