9SS24PF24-F24 9SS-Dual Plane Swivel fluid power component configured with a -24 (1 1/2″) PF-Female Pipe barrel connector and -20 (1 1/4″) F-Male O-Ring Face Seal stem connector.
Related Documents & Downloads
9SS24PF24-F24 9SS-Dual Plane Swivel

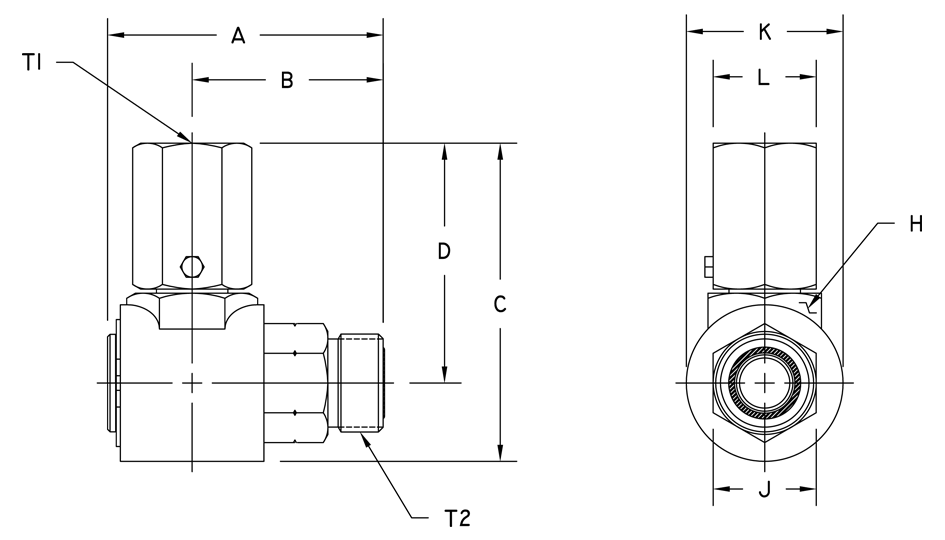

Product Specifications
| Weight | 10.69 lbs |
|---|---|
| Part Number | 9SS24PF24-F24 |
| Barrel Connector | PF-Female Pipe |
| BC Size | -24 (1 1/2") |
| Stem Connector | F-Male O-Ring Face Seal |
| SC Size | -20 (1 1/4") |
| K Diameter | 3.5 |
| T1 (metric) | NPTF |
| T2 (metric) | UN-2A |
| A (metric) | 133.6 mm |
| B (metric) | 88.6 mm |
| C (metric) | 174.8 mm |
| D (metric) | 130.3 mm |
| E (metric) | 0.0 mm |
| H Hex (metric) | 60.2 mm |
| J Hex (metric) | 60.2 mm |
| L Hex (metric) | 69.9 mm |
| K Diameter (metric) | 88.9 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 4.85 kg |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 20.7 MPa |
