9S8PF8-PF8 9S-90 Degree Swivel fluid power component configured with a -8 (1/2″) PF-Female Pipe barrel connector and -8 (1/2″) PF-Female Pipe stem connector.
Related Documents & Downloads
9S8PF8-PF8 9S-90 Degree Swivel
Product Specifications
| Weight | 0.83 lbs |
|---|---|
| Part Number | 9S8PF8-PF8 |
| Barrel Connector | PF-Female Pipe |
| BC Size | -8 (1/2") |
| Stem Connector | PF-Female Pipe |
| SC Size | -8 (1/2") |

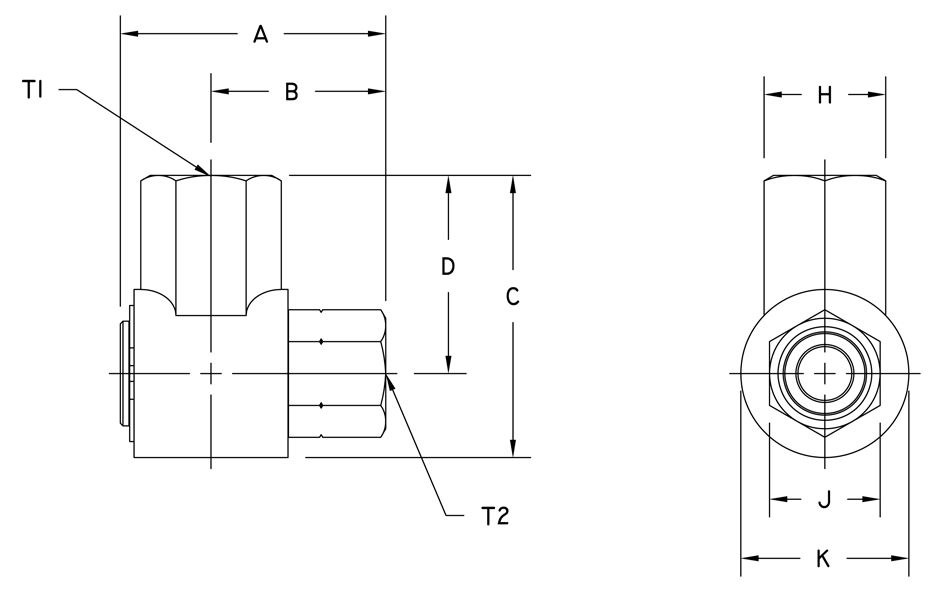

| K Diameter | 1.3 |
| T1 (metric) | NPTF |
| T2 (metric) | NPTF |
| A (metric) | 66.5 mm |
| B (metric) | 45.2 mm |
| C (metric) | 63.2 mm |
| D (metric) | 46.7 mm |
| H Hex (metric) | 28.7 mm |
| J Hex (metric) | 25.4 mm |
| K Diameter (metric) | 33.0 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 0.38 kg |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 34.5 MPa |
