9S6J8-P6 9S-90 Degree Swivel fluid power component configured with a -8 (1/2″) J-Male JIC barrel connector and -6 (3/8″) P-Male Pipe stem connector.
Related Documents & Downloads
9S6J8-P6 9S-90 Degree Swivel

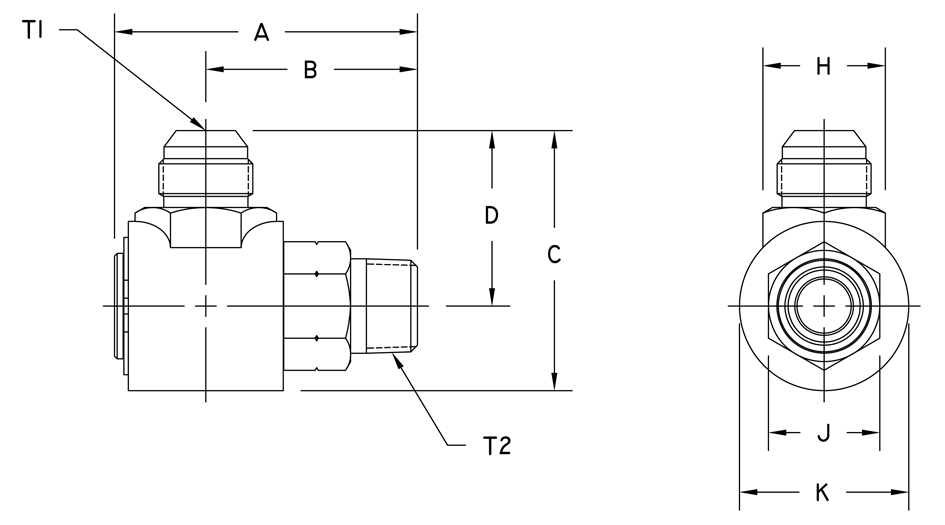

Product Specifications
| Weight | 0.48 lbs |
|---|---|
| Part Number | 9S6J8-P6 |
| Barrel Connector | J-Male JIC |
| BC Size | -8 (1/2") |
| Stem Connector | P-Male Pipe |
| SC Size | -6 (3/8") |
| K Diameter | 0.92 |
| T1 (metric) | UNF-2A |
| T2 (metric) | NPTF |
| A (metric) | 63.5 mm |
| B (metric) | 41.9 mm |
| C (metric) | 49.5 mm |
| D (metric) | 37.8 mm |
| H Hex (metric) | 25.4 mm |
| J Hex (metric) | 22.1 mm |
| K Diameter (metric) | 23.4 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 0.22 kg |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 34.5 MPa |
