9S4FU4-P4 9S-90 Degree Swivel fluid power component configured with a -4 (1/4″) FU-Female O-Ring Face Seal Union barrel connector and -4 (1/4″) P-Male Pipe stem connector.
Related Documents & Downloads
9S4FU4-P4 9S-90 Degree Swivel

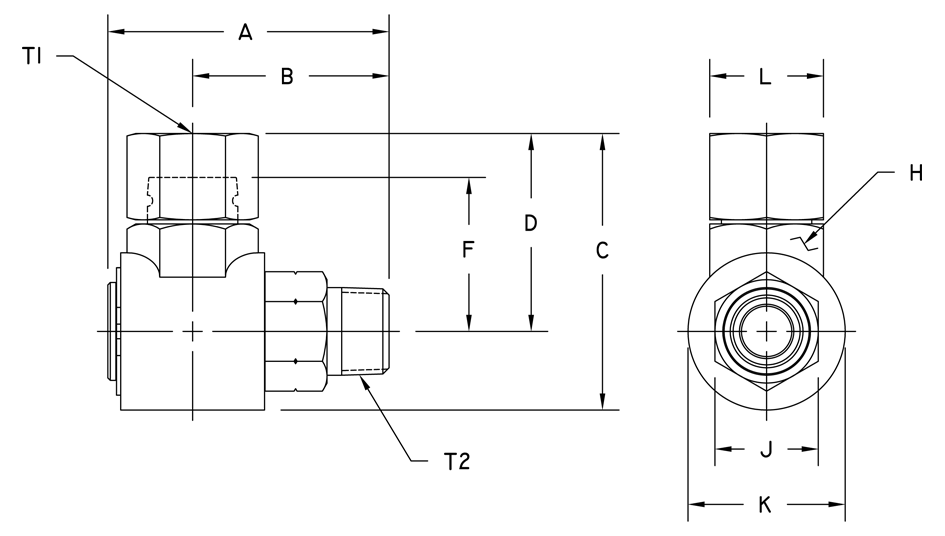

Product Specifications
| Weight | 0.31 lbs |
|---|---|
| Part Number | 9S4FU4-P4 |
| Barrel Connector | FU-Female O-Ring Face Seal Union |
| BC Size | -4 (1/4") |
| Stem Connector | P-Male Pipe |
| SC Size | -4 (1/4") |
| K Diameter | 0.75 |
| T1 (metric) | UNF-2B |
| T2 (metric) | NPTF |
| A (metric) | 56.9 mm |
| B (metric) | 38.6 mm |
| C (metric) | 39.9 mm |
| D (metric) | 30.5 mm |
| F (metric) | 22.4 mm |
| H Hex (metric) | 19.1 mm |
| J Hex (metric) | 19.1 mm |
| L Hex (metric) | 19.1 mm |
| K Diameter (metric) | 19.1 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 0.14 kg |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 34.5 MPa |
