9S32J32-J32 9S-90 Degree Swivel fluid power component configured with a -32 (2″) J-Male JIC barrel connector and -32 (2″) J-Male JIC stem connector.
Related Documents & Downloads
9S32J32-J32 9S-90 Degree Swivel
Product Specifications
| Weight | 13.38 lbs |
|---|---|
| Part Number | 9S32J32-J32 |
| Barrel Connector | J-Male JIC |
| BC Size | -32 (2") |
| Stem Connector | J-Male JIC |
| SC Size | -32 (2") |

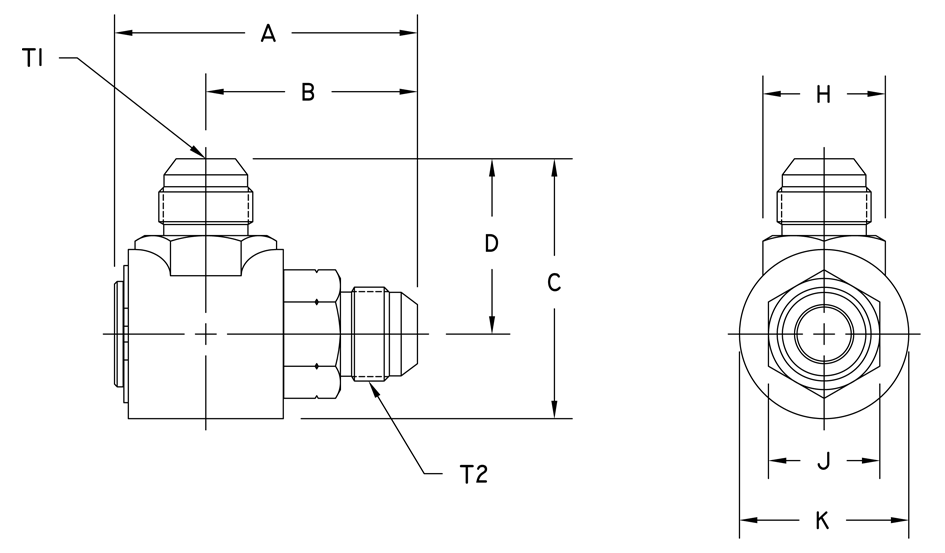

| K Diameter | 4.5 |
| T1 (metric) | UN-2A |
| T2 (metric) | UN-2A |
| A (metric) | 158.8 mm |
| B (metric) | 105.4 mm |
| C (metric) | 151.6 mm |
| D (metric) | 94.5 mm |
| H Hex (metric) | 72.9 mm |
| J Hex (metric) | 79.2 mm |
| K Diameter (metric) | 114.3 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 6.07 kg |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 20.7 MPa |
