9S24FU24-FF24 9S-90 Degree Swivel fluid power component configured with a -24 (1 1/2″) FU-Female O-Ring Face Seal Union barrel connector and -24 (1 1/2″) FF-Female O-Ring Face Seal stem connector.
Related Documents & Downloads
9S24FU24-FF24 9S-90 Degree Swivel
Product Specifications
| Part Number | 9S24FU24-FF24 |
|---|---|
| Barrel Connector | FU-Female O-Ring Face Seal Union |
| BC Size | -24 (1 1/2") |
| Stem Connector | FF-Female O-Ring Face Seal |
| SC Size | -24 (1 1/2") |

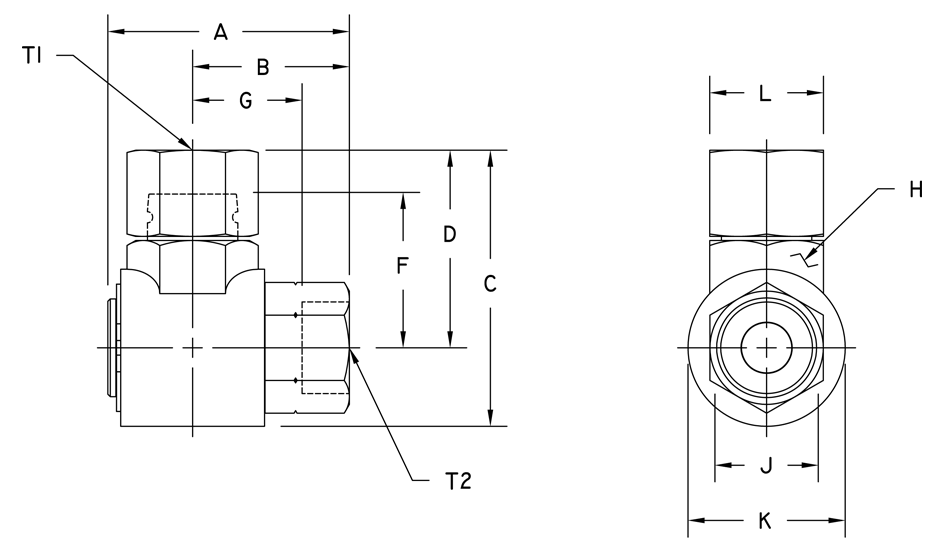

| K Diameter | 3.5 |
| T1 (metric) | UN-2B |
| T2 (metric) | UN-2B |
| A (metric) | 112.5 mm |
| B (metric) | 67.6 mm |
| C (metric) | 125.2 mm |
| D (metric) | 80.8 mm |
| F (metric) | 65.8 mm |
| g (metric) | 52.8 mm |
| H Hex (metric) | 60.2 mm |
| J Hex (metric) | 60.2 mm |
| L Hex (metric) | 57.2 mm |
| K Diameter (metric) | 88.9 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 0.00 kg |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 27.6 MPa |
