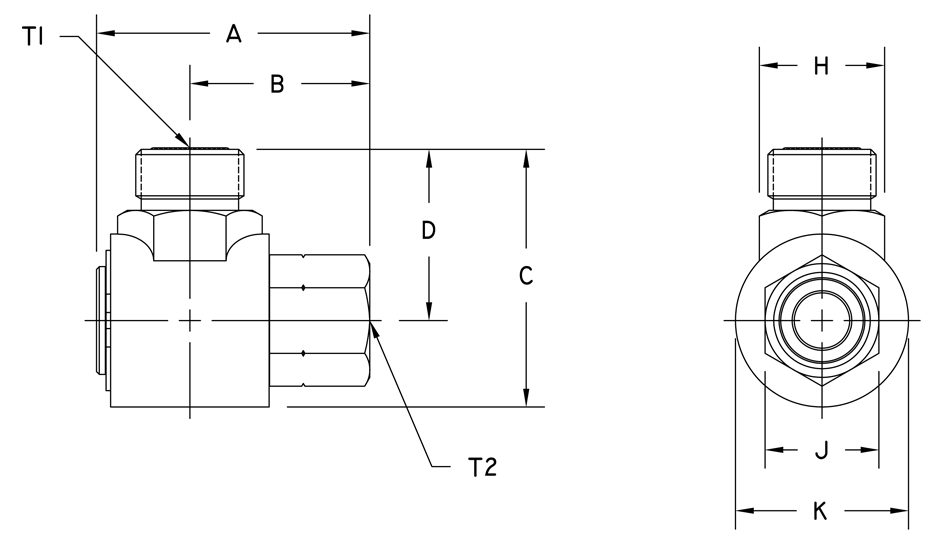

9S24F24-PF24 9S-90 Degree Swivel fluid power component configured with a -24 (1 1/2″) F-Male O-Ring Face Seal barrel connector and -24 (1 1/2″) PF-Female Pipe stem connector.
Related Documents & Downloads
9S24F24-PF24 9S-90 Degree Swivel
Product Specifications
| Weight | 7.19 lbs |
|---|---|
| Part Number | 9S24F24-PF24 |
| Barrel Connector | F-Male O-Ring Face Seal |
| BC Size | -24 (1 1/2") |
| Stem Connector | PF-Female Pipe |
| SC Size | -24 (1 1/2") |
| K Diameter | 3.5 |
| T1 (metric) | UN-2A |
| T2 (metric) | NPTF |
| A (metric) | 124.2 mm |
| B (metric) | 79.2 mm |
| C (metric) | 110.0 mm |
| D (metric) | 65.5 mm |
| H Hex (metric) | 60.2 mm |
| J Hex (metric) | 60.2 mm |
| K Diameter (metric) | 88.9 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 3.26 kg |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 27.6 MPa |
