9S16PU16-P16 9S-90 Degree Swivel fluid power component configured with a -16 (1″) PU-Female Pipe Union barrel connector and -16 (1″) P-Male Pipe stem connector.
Related Documents & Downloads
9S16PU16-P16 9S-90 Degree Swivel
Product Specifications
| Weight | 2.38 lbs |
|---|---|
| Part Number | 9S16PU16-P16 |
| Barrel Connector | PU-Female Pipe Union |
| BC Size | -16 (1") |
| Stem Connector | P-Male Pipe |
| SC Size | -16 (1") |

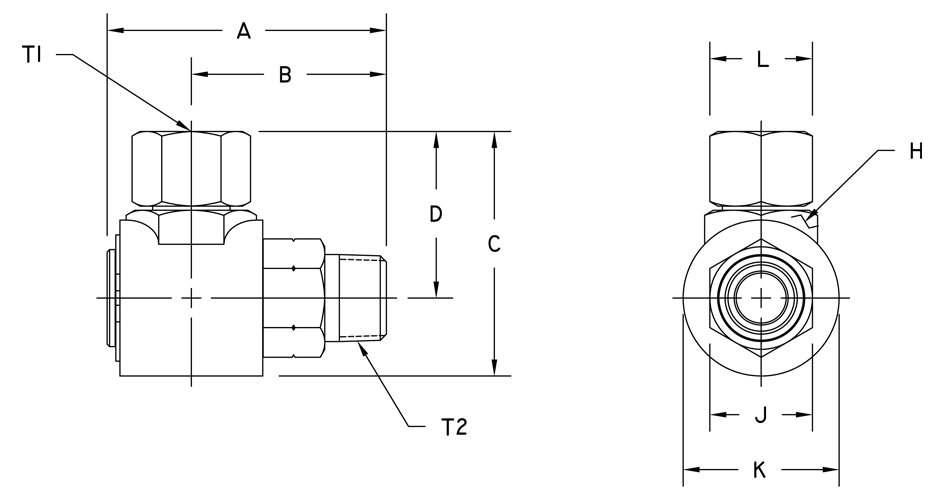

| K Diameter | 2.13 |
| T1 (metric) | NPSM |
| T2 (metric) | NPTF |
| A (metric) | 97.0 mm |
| B (metric) | 68.1 mm |
| C (metric) | 84.1 mm |
| D (metric) | 57.2 mm |
| H Hex (metric) | 41.4 mm |
| J Hex (metric) | 41.4 mm |
| L Hex (metric) | 38.1 mm |
| K Diameter (metric) | 54.1 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 1.08 kg |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 27.6 MPa |
