96S8FP8-FH8 Flange Swivel fluid power component configured with a -8 (1/2″) FP-4 Bolt Flange Port barrel connector and -8 (1/2″) FH-4 Bolt Flange Head stem connector.
Related Documents & Downloads
96S8FP8-FH8 Flange Swivel
Product Specifications
| Weight | 3.8 lbs |
|---|---|
| Part Number | 96S8FP8-FH8 |
| Barrel Connector | FP-4 Bolt Flange Port |
| BC Size | -8 (1/2") |
| Stem Connector | FH-4 Bolt Flange Head |
| SC Size | -8 (1/2") |

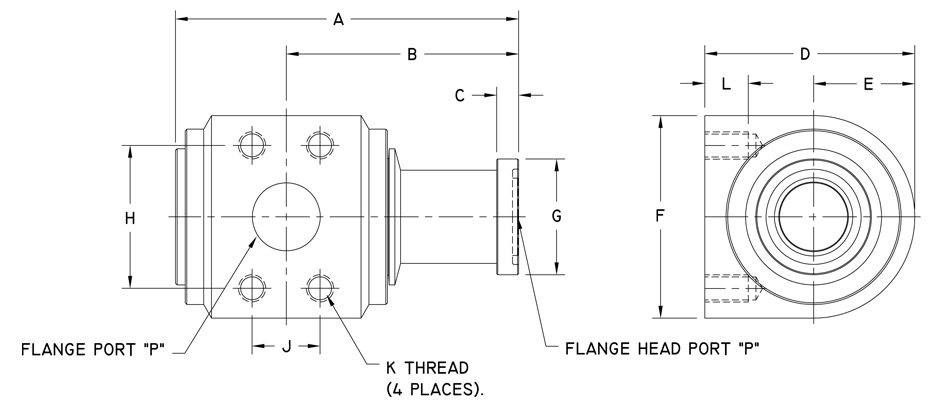

| A (metric) | 104.9 mm |
| B (metric) | 73.4 mm |
| C (metric) | 7.9 mm |
| D (metric) | 72.4 mm |
| E (metric) | 32.3 mm |
| F (metric) | 64.3 mm |
| g (metric) | 31.8 mm |
| H (metric) | 40.5 mm |
| J (metric) | 18.2 mm |
| L (metric) | 22.1 mm |
| P (metric) | 12.7 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 1.7 kg |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 41.4 MPa |
