93S12FP12-FH12 Flange Swivel fluid power component configured with a -12 (3/4″) FP-4 Bolt Flange Port barrel connector and -12 (3/4″) FH-4 Bolt Flange Head stem connector.
Related Documents & Downloads
93S12FP12-FH12 Flange Swivel
Product Specifications
| Weight | 3.13 lbs |
|---|---|
| Part Number | 93S12FP12-FH12 |
| Barrel Connector | FP-4 Bolt Flange Port |
| BC Size | -12 (3/4") |
| Stem Connector | FH-4 Bolt Flange Head |
| SC Size | -12 (3/4") |

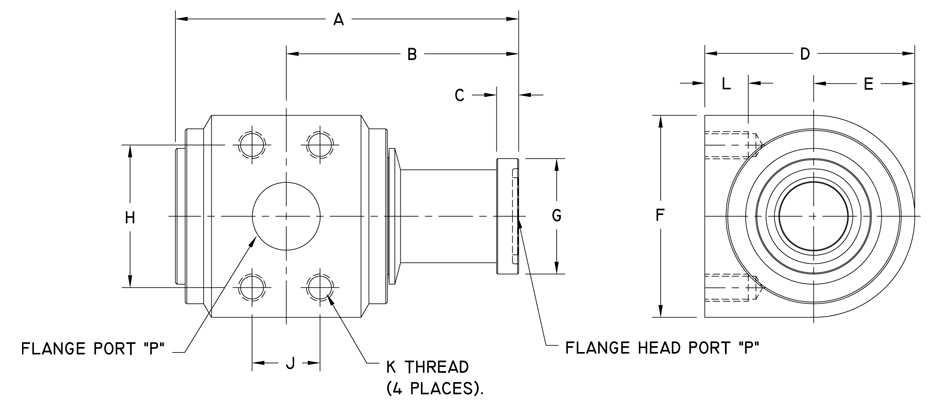

| A (metric) | 106.2 mm |
| B (metric) | 74.4 mm |
| C (metric) | 6.9 mm |
| D (metric) | 72.4 mm |
| E (metric) | 32.3 mm |
| F (metric) | 64.3 mm |
| g (metric) | 38.1 mm |
| H (metric) | 47.6 mm |
| J (metric) | 22.2 mm |
| L (metric) | 22.4 mm |
| P (metric) | 19.1 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 1.4 kg |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 34.5 MPa |
