6TVN25-FH40 6TV – Poppet Style Flanged Port Coupling, Code 61 fluid power component configured with a FH – SAE J518 4-Bolt Flange Head port connector sized at -40 (2 1/2″).
Related Documents & Downloads
6TVN25-FH40 6TV - Poppet Style Flanged Port Coupling
Product Specifications
| Weight | 26.1 lbs |
|---|---|
| Part Number | 6TVN25-FH40 |
| Port Connector | FH – SAE J518 4-Bolt Flange Head |
| Port Size | -40 (2 1/2") |
| Coupling Size | -40 (2 1/2") |
| PC Sub | Code 61 |
| Max Connect Under Pressure | 500 psi |
| Mini Burst Pressure (Coupled) | 10,000 psi |

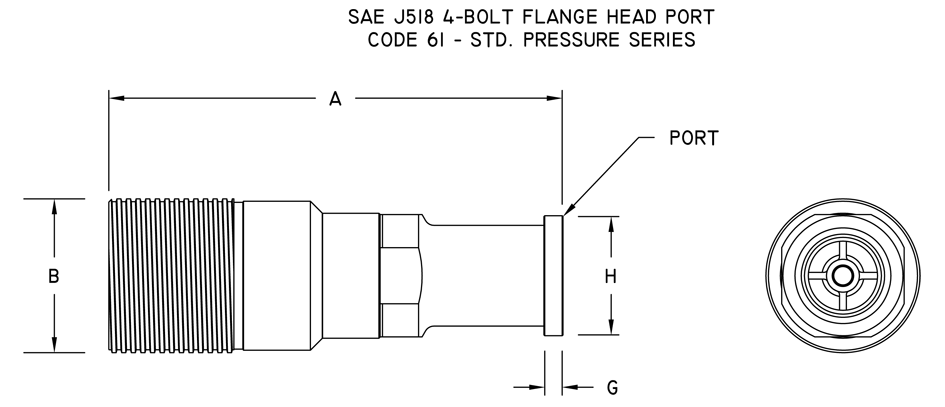

| A (metric) | 314.7 mm |
| B (metric) | 133.4 mm |
| g (metric) | 9.5 mm |
| H Diameter (metric) | 84.1 mm |
| Max W.P. Coupled (Metric) | 17.2 Mpa |
| Max W.P. Uncoupled (Metric) | 17.2 Mpa |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 11.8 kg |
| Temperature Range (C) | -34°C to 121°C |
