6TVHC6-FP12 6TV – Poppet Style Flanged Port Coupling, Code 62 fluid power component configured with a FP – SAE J518 4-Bolt Flange Port port connector sized at -12 (3/4″).
Related Documents & Downloads
6TVHC6-FP12 6TV - Poppet Style Flanged Port Coupling
Product Specifications
| Weight | 3 lbs |
|---|---|
| Part Number | 6TVHC6-FP12 |
| Port Connector | FP – SAE J518 4-Bolt Flange Port |
| Port Size | -12 (3/4") |
| Coupling Size | -12 (3/4") |
| PC Sub | Code 62 |
| Max Connect Under Pressure | 500 psi |
| Mini Burst Pressure (Coupled) | 24,000 psi |

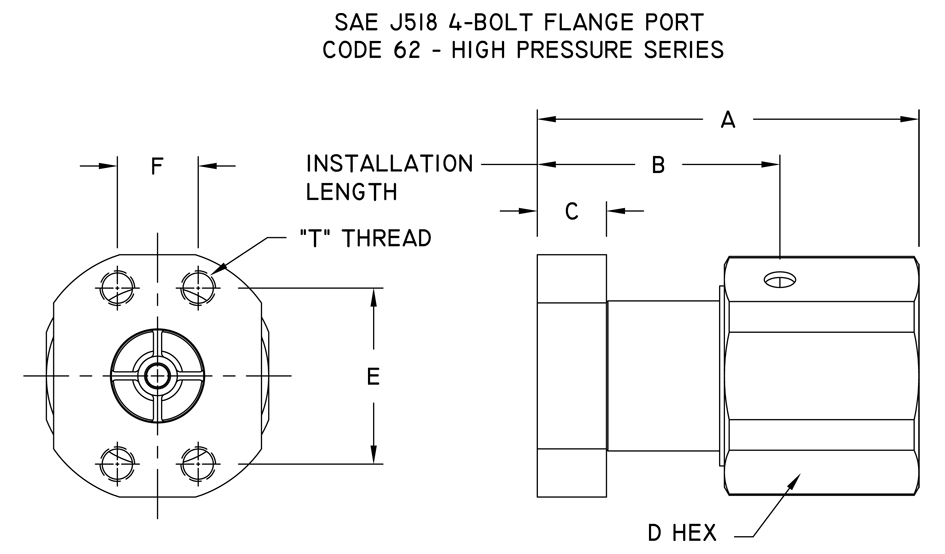

| A (metric) | 104.9 mm |
| B (metric) | 73.2 mm |
| C (metric) | 23.9 mm |
| E (metric) | 50.8 mm |
| F Diameter (metric) | 23.9 mm |
| T (metric) | UNC-2B |
| Max W.P. Coupled (Metric) | 41.4 Mpa |
| Max W.P. Uncoupled (Metric) | 20.7 Mpa |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 1.4 kg |
| Temperature Range (C) | -34°C to 121°C |
