5TV-N-40 5TV Poppet Style Coupling fluid power component configured with a PF – Female Pipe port connector sized at -40 (2 1/2″).
Related Documents & Downloads
5TV-N-40 5TV Poppet Style Coupling
Product Specifications
| Weight | 21.3 lbs |
|---|---|
| Part Number | 5TV-N-40 |
| Kit Product Type | 5TV Coupling |
| Port Connector | PF – Female Pipe |
| Port Size | -40 (2 1/2") |
| Max Connect Under Pressure | 500 psi |
| Mini Burst Pressure (Coupled) | 20,000 psi |
| T1 (metric) | NPTF |

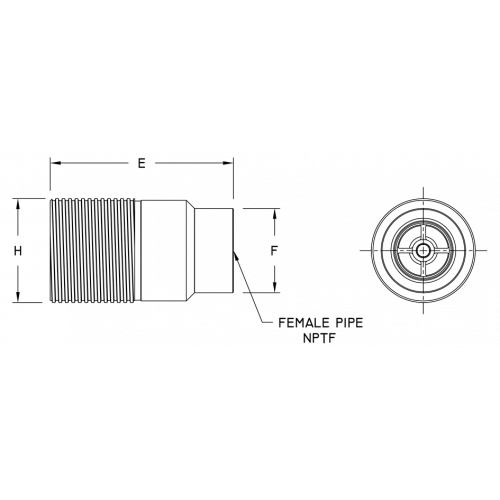

| E (metric) | 221.0 mm |
| F Diameter (metric) | 104.9 mm |
| H Diameter (metric) | 133.4 mm |
| Max W.P. Coupled (Metric) | 34.5 Mpa |
| Max W.P. Uncoupled (Metric) | 20.7 Mpa |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 9.7 kg |
| Temperature Range (C) | -34°C to 121°C |
