5TV-N-32OF 5TV Poppet Style Coupling fluid power component configured with a OF – Female SAE O-Ring port connector sized at -32 (2″).
Related Documents & Downloads
5TV-N-32OF 5TV Poppet Style Coupling
Product Specifications
| Weight | 12.1 lbs |
|---|---|
| Part Number | 5TV-N-32OF |
| Kit Product Type | 5TV Coupling |
| Port Connector | OF – Female SAE O-Ring |
| Port Size | -32 (2") |
| Max Connect Under Pressure | 500 psi |
| Mini Burst Pressure (Coupled) | 7,200 psi |
| T1 (metric) | UN-2B |

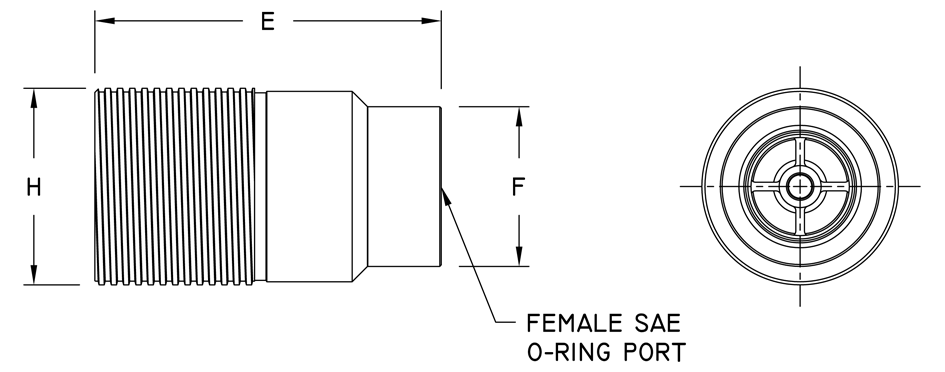

| E (metric) | 179.1 mm |
| F Diameter (metric) | 98.3 mm |
| H Diameter (metric) | 101.6 mm |
| Max W.P. Coupled (Metric) | 12.4 Mpa |
| Max W.P. Uncoupled (Metric) | 12.4 Mpa |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 5.5 kg |
| Temperature Range (C) | -34°C to 121°C |
