5TV-HC-12OF 5TV Poppet Style Coupling fluid power component configured with a OF – Female SAE O-Ring port connector sized at -12 (3/4″).
Related Documents & Downloads
5TV-HC-12OF 5TV Poppet Style Coupling
Product Specifications
| Weight | 1.2 lbs |
|---|---|
| Part Number | 5TV-HC-12OF |
| Kit Product Type | 5TV Coupling |
| Port Connector | OF – Female SAE O-Ring |
| Port Size | -12 (3/4") |
| Max Connect Under Pressure | 500 psi |
| Mini Burst Pressure (Coupled) | 20,000 psi |
| T1 (metric) | UN-2B |

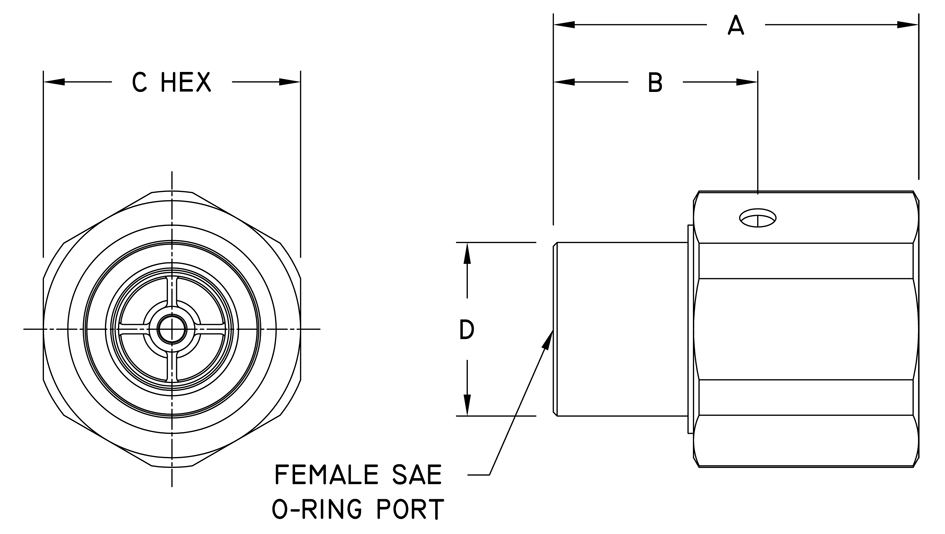

| A (metric) | 72.1 mm |
| B (metric) | 40.4 mm |
| C (metric) | 50.8 mm |
| D Diameter (metric) | 34.3 mm |
| Max W.P. Coupled (Metric) | 34.5 Mpa |
| Max W.P. Uncoupled (Metric) | 20.7 Mpa |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 0.5 kg |
| Temperature Range (C) | -34°C to 121°C |
