18S6F4-J5 18S-Parallel Plane Swivel fluid power component configured with a -4 (1/4″) F-Male O-Ring Face Seal barrel connector and -5 (5/16″) J-Male JIC stem connector.
18S6F4-J5 18S-Parallel Plane Swivel

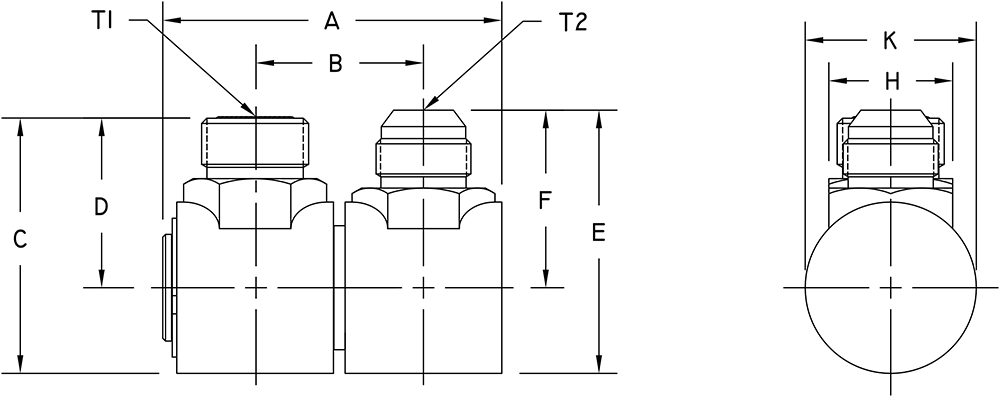

Product Specifications
| Part Number | 18S6F4-J5 |
|---|---|
| Barrel Connector | F-Male O-Ring Face Seal |
| BC Size | -4 (1/4") |
| Stem Connector | J-Male JIC |
| SC Size | -5 (5/16") |
| K Diameter | 0.92 |
| T1 (metric) | UNF-2A |
| T2 (metric) | UNF-2A |
| A (metric) | 77.5 mm |
| B (metric) | 38.1 mm |
| C (metric) | 39.9 mm |
| D (metric) | 28.2 mm |
| E (metric) | 41.7 mm |
| F (metric) | 30.0 mm |
| g (metric) | 0.0 mm |
| G1 (metric) | 0.0 mm |
| H Hex (metric) | 25.4 mm |
| J Hex (metric) | 0.0 mm |
| L Hex (metric) | 0.0 mm |
| K Diameter (metric) | 23.4 mm |
| Vacuum (metric) | 1.0 bar |
| Weight (kgs) | 0.00 kg |
| Temperature Range (C) | -34°C to 121°C |
| Max W.P. (Metric) | 20.7 MPa |
